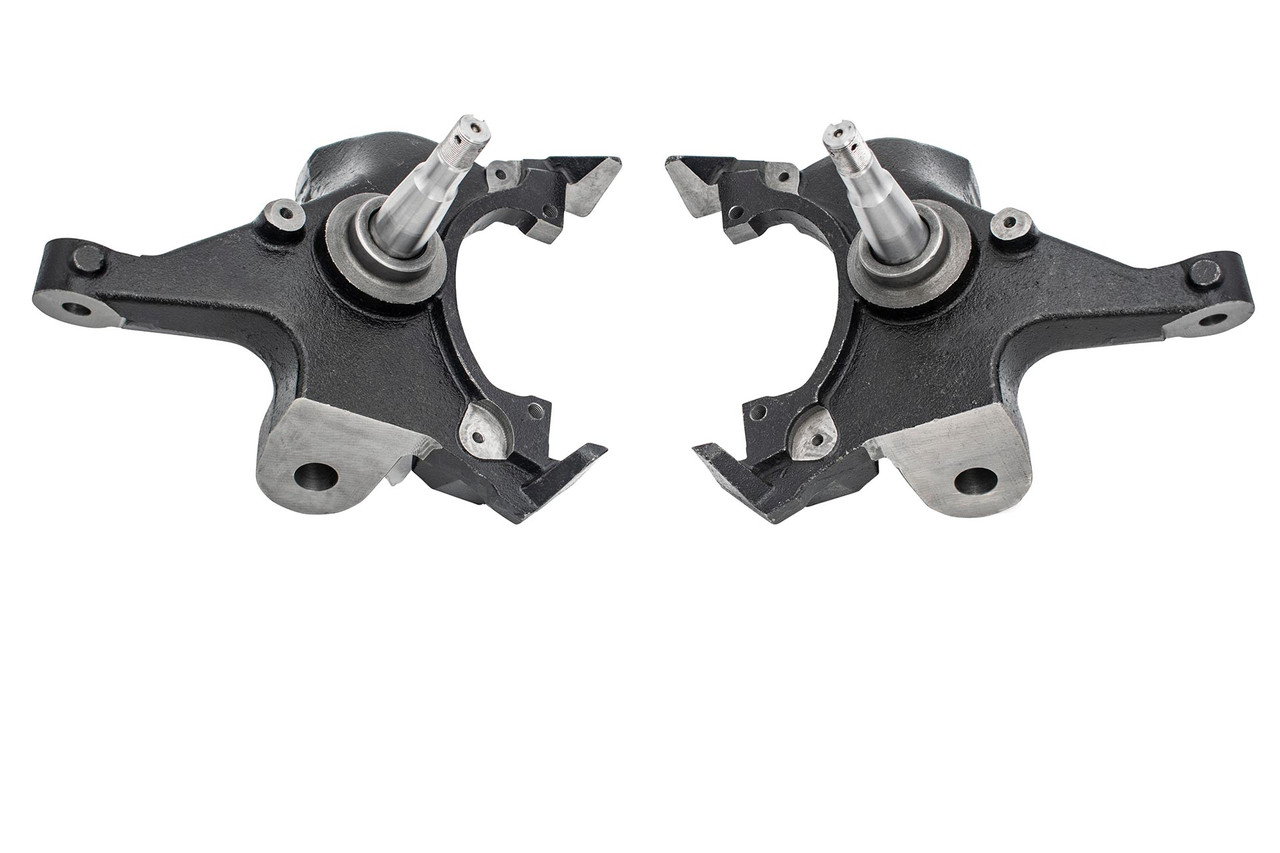

  • Drop Spindles
  • Measure Rotors (1.25" Thick)

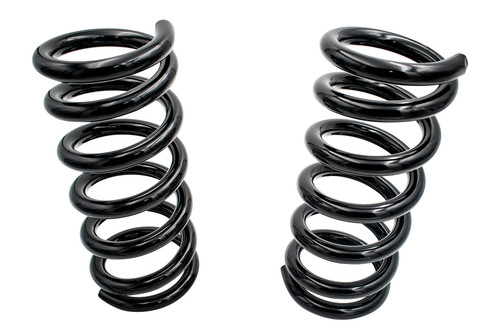

  • Lowering Coils

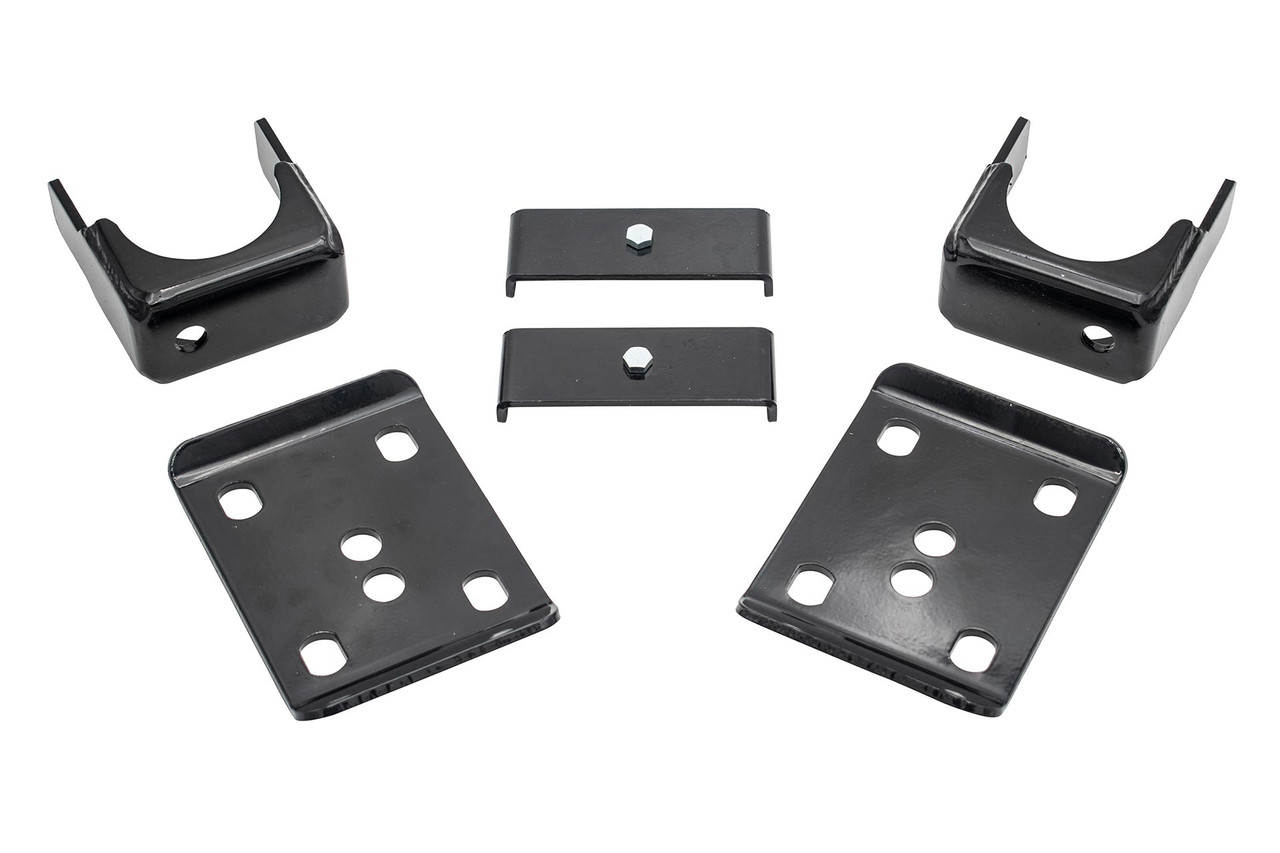

  • Flip Kit
  • Lift Shackles

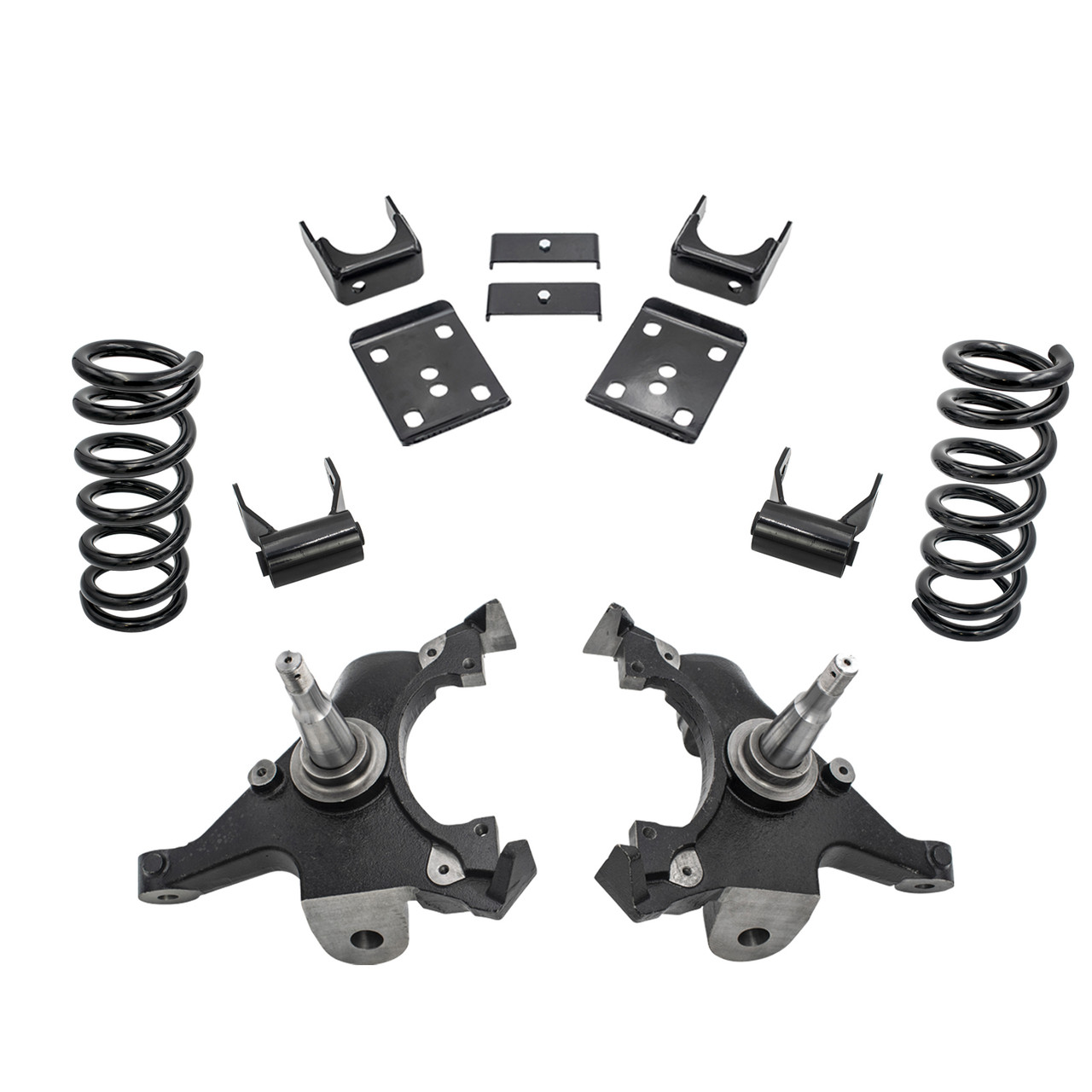

    • 88 - 98 C1500 3" / 5" Spindle + Coil Drop Kit (V8)

    Trekline Motorsports, Inc.
    $498.28
    (No reviews yet) Write a Review
    SKU:
    1300DR110037
    Weight:
    93.81 LBS
    Minimum Purchase:
    1 unit
    Shipping:
    Calculated at Checkout
    Schema_Rear_Drop_Height:
    5.00 inches
    Schema_Front_Drop_Height:
    3.00 inches
    Schema_Vehicle_Make:
    Chevrolet / GMC
    Schema_Vehicle_Model:
    C1500
    Schema_Drive_Type:
    RWD
    Schema_Year_Range:
    1988-1998
    Schema_Kit_Type:
    Drop Kit
    Engine Size:
    V8
    Front Drop Amount (Inches):
    3
    Rear Drop Amount (Inches):
    5
    Adding to cart… category.add_cart_announcement
    Delivery by ,
    If ordered within hours and minutes
    Not Shipping to ?
    View Delivery Options and Prices

    Product Description

    Description:

    Trekline Motorsports built this 3"/5" drop kit for the 1988–1998 Chevy/GMC C1500 V8. Up front, drop spindles and lowering coils combine for the 3" front drop. Out back, a flip kit relocates the rear axle above the leaf springs for the 5" rear drop.

    V8 models only — WILL NOT FIT V6 or 454 SS models.

    Includes:

  • 2" Drop Spindles
  • 1" V8 Drop Coils
  • 6" Rear Flip Kit
  • 1" Rear Lift Shackle

    • Vehicle Fitment:

  • 1988-1998 Chevrolet C1500 RWD
  • 1988-1998 GMC C1500 RWD
    •

    Fitment Notes:

  • Fits V8 engines only. If you have a V6, please check our other listings.
  • Does NOT fit 454 SS models.
  • Does NOT fit 1988–1991 Standard Cab models (w/ 1" thick rotors). See other listings if you have 88-91 std cab models.

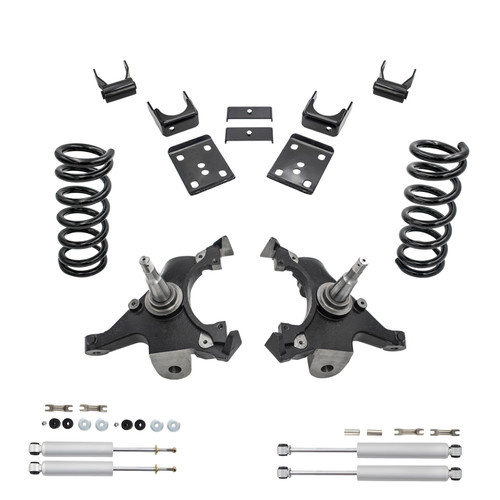

  • Shorter shocks are recommended for this drop. See our other listings for the kit with shocks included.

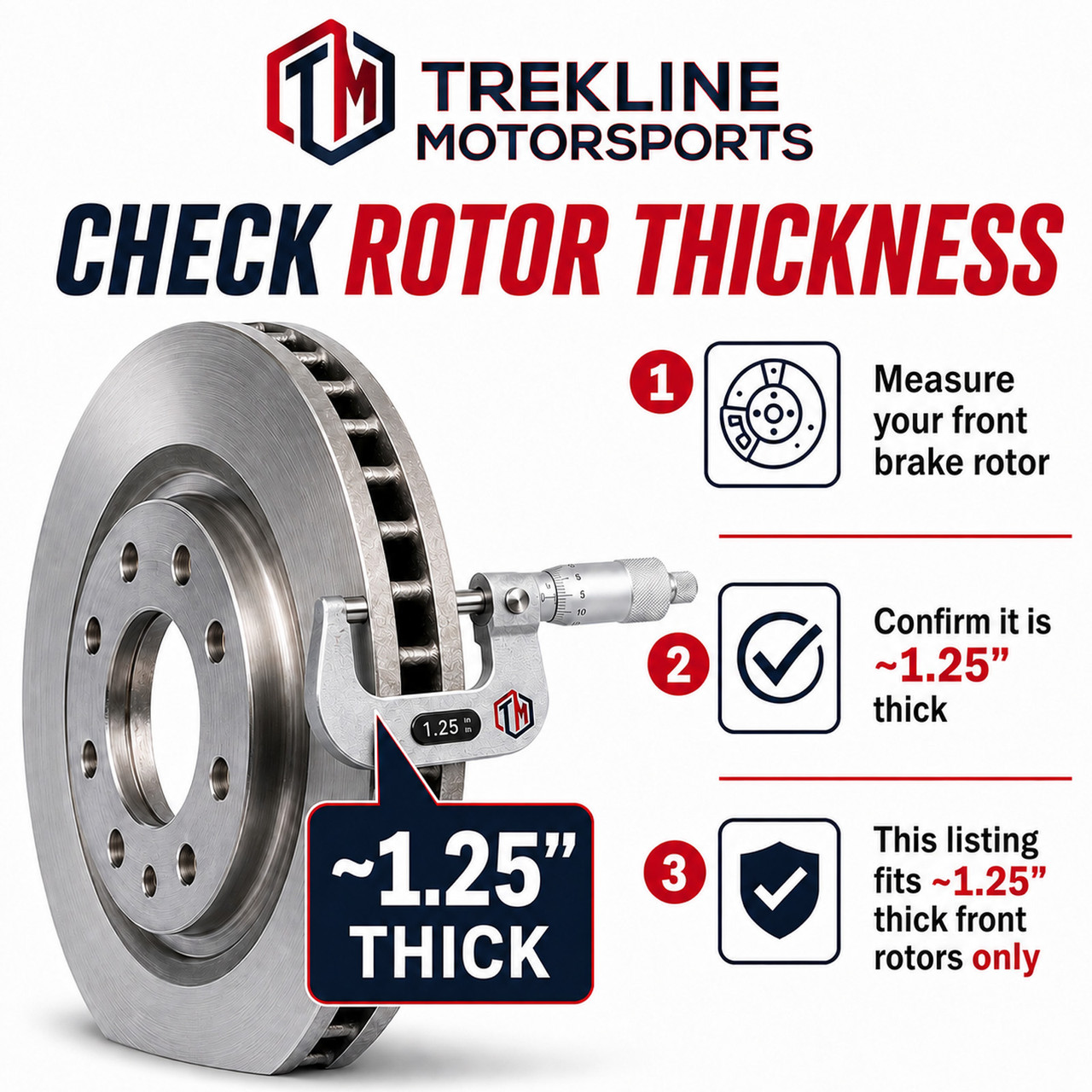

  • Requires 1.25" thick front brake rotors. Does NOT fit models with 1" thick rotors. See our other listings if you have the 1" thick rotors.
  • Spindles can run 15" or larger rims.
  • These drop spindles extend the front track width by 0.45" per side. If you don't want the track width extended, see our other listings that use our new drop spindles which do not extend the track width.
  • Shackle Hardware Kit Recommend to make the install easier. See Link Below
  • C-Notch is REQUIRED for this drop. See our other listings for the C-Notch kit.
    •

    Related SKUS (if any):

    1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998 Chevrolet / GMC C1500 RWD

    88, 89, 90, 91, 92, 93, 94, 95, 96, 97, 98 Chevrolet / GMC C1500 RWD








    Product Videos

    Custom Field

    Schema_Rear_Drop_Height 5.00 inches
    Schema_Front_Drop_Height 3.00 inches
    Schema_Vehicle_Make Chevrolet / GMC
    Schema_Vehicle_Model C1500
    Schema_Drive_Type RWD
    Schema_Year_Range 1988-1998
    Schema_Kit_Type Drop Kit
    Engine Size V8
    Front Drop Amount (Inches) 3
    Rear Drop Amount (Inches) 5
