  • 2/4 07-14 GM SUV Spindle Drop Kit
  • Drop Spindles

    • 2"/4" Spindle Drop Kit for 2007-2014 GM SUVs

    Trekline Motorsports, Inc.
    $375.59
    (No reviews yet) Write a Review
    Ships from TN Most in-stock parts ship within 1 business day.
    Fitment first Review compatibility and notes before ordering.
    Need help? Contact us before ordering.
    Adding to cart…
    Ready to order 2"/4" Spindle Drop Kit for 2007-2014 GM SUVs
    SKU:
    1525DR110040
    Weight:
    60.10 LBS
    Minimum Purchase:
    1 unit
    Shipping:
    Calculated at Checkout
    Spindle Track Width Change:
    No change
    Spindle Rim Requirement:
    17 inches or larger
    Includes Shocks:
    No shocks included
    Front Drop Type:
    Spindles
    Front Drop Amount (Inches):
    2
    Placement on Vehicle:
    Front; Rear
    Rear Drop Amount (Inches):
    4
    Total Drop Amount (Inches):
    2 / 4

    Product Description

    Description:

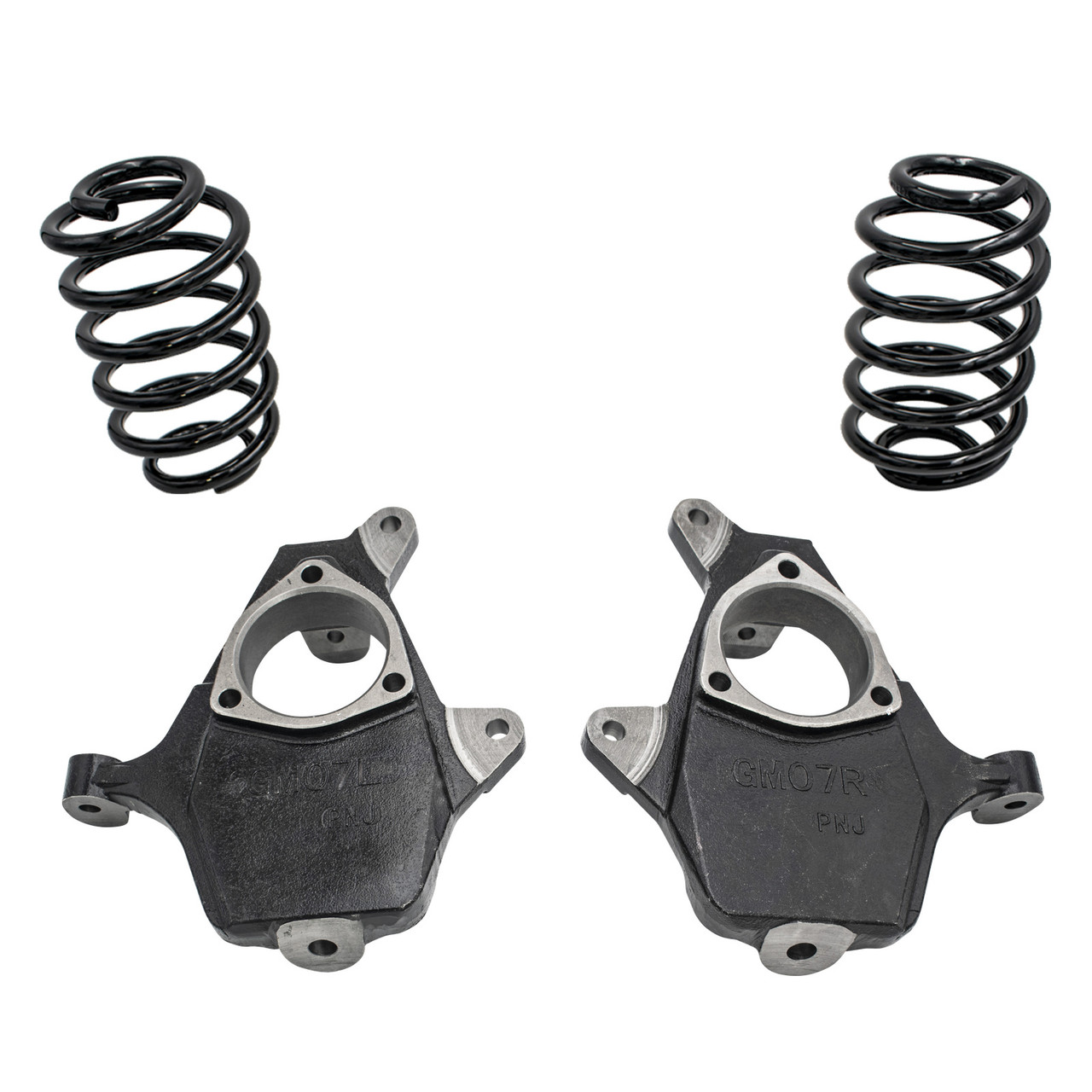

    Lower the front 2 inches and the rear 4 inches on the listed 2007–2014 GM SUVs. This kit pairs 2-inch drop spindles with rear lowering coils. Check the vehicle and suspension requirements below before ordering.

    17-inch or larger rims are required with these drop spindles. For 17- or 18-inch rims, use lower ball-joint hardware matched to the installed joint thread.

    Includes:

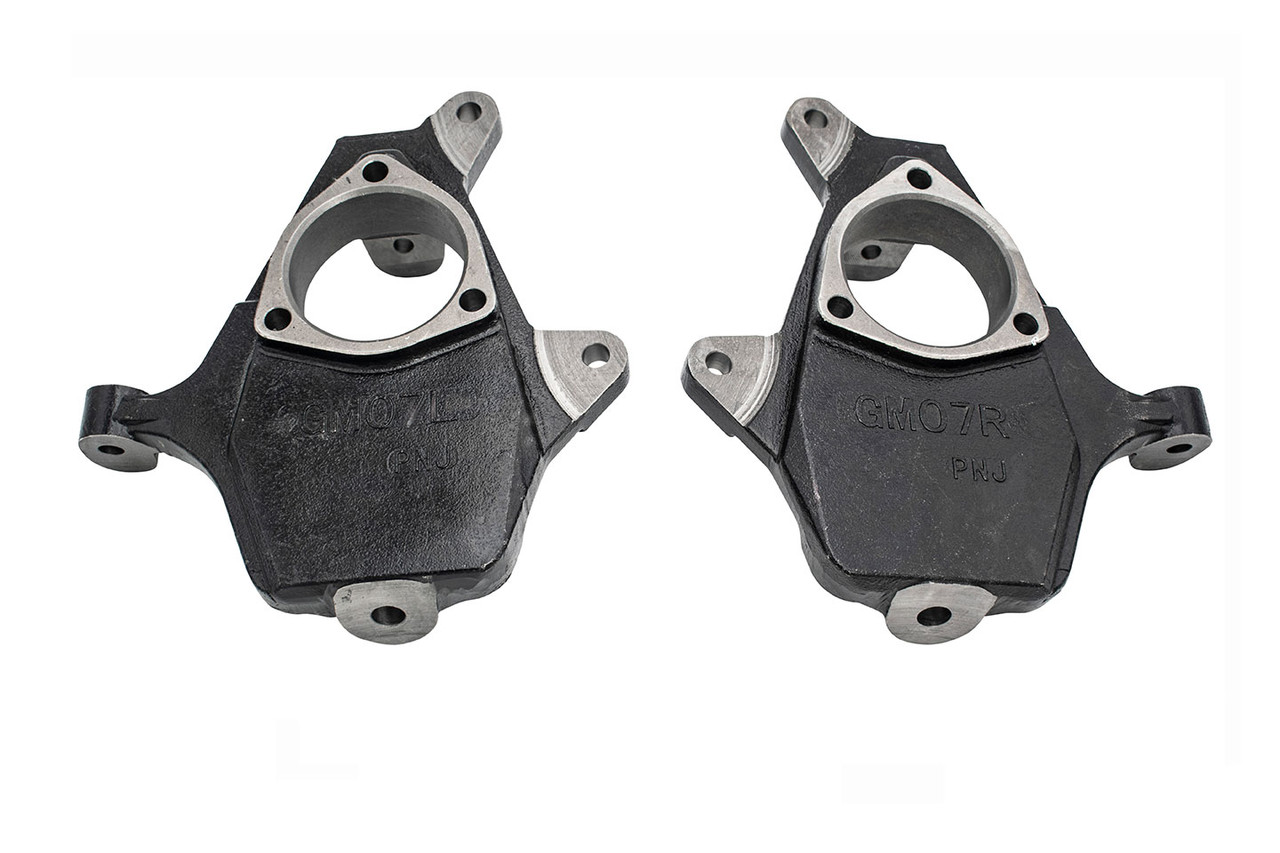

    • 2-inch front drop spindles (pair)
    • 4-inch rear drop coils

    Vehicle Fitment:

    • 2007-2014 Chevrolet Tahoe 2WD / 4WD
    • 2007-2014 Chevrolet Suburban 1500 2WD / 4WD
    • 2007-2013 Chevrolet Avalanche 1500 2WD / 4WD
    • 2007-2014 GMC Yukon 2WD / 4WD
    • 2007-2014 GMC Yukon XL 1500 2WD / 4WD
    • 2007-2014 Cadillac Escalade 2WD / AWD
    • 2007-2014 Cadillac Escalade ESV 2WD / AWD
    • 2007-2013 Cadillac Escalade EXT AWD


    Fitment Notes:

    • Rear lowering coils do not fit vehicles with both RPO ZW7 and G65.
    • On 4WD and AWD vehicles, trim the upper ball-joint stud for front CV-boot clearance when installing the drop spindles.
    • Drop spindles require wheels 17 inches or larger. For 17- or 18-inch wheels, lower ball-joint hardware is required; match the installed ball-joint thread.
    • Free Travel Mod Recommended! Rear factory bump-stop brackets removal will provide additional suspension travel.
    • Factory Autoride requires rear sensor rods, sold separately. Vehicles without factory air suspension do not need them.
    • For a 4-inch rear drop on non-air-ride vehicles, rear drop shocks or shock extenders are required; neither is included.


    Related SKUS (if any):

  • Sensor rods for factory air ride only - if equipped: Escalade
  • Sensor rods for factory air ride only - if equipped: Avalanche
  • Sensor rods for factory air ride only - if equipped: Tahoe/Suburban
  • Sensor rods for factory air ride only - if equipped: Yukon/XL
  • Lower Ball Joint Hardware Kit — REQUIRED for 17"/18" rims with these spindles (M16-2.0, stock/OEM ball joints)
  • Lower Ball Joint Hardware Kit — REQUIRED for 17"/18" rims with these spindles (M16-1.5, aftermarket ball joints)
  • SUV shock extenders without trailing-arm relocators

    • 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014 Chevrolet / GMC / Cadillac Tahoe / Suburban 1500 / Avalanche 1500 / Yukon / Yukon XL 1500 / Escalade / Escalade ESV / Escalade EXT 2WD / 4WD / AWD

    07, 08, 09, 10, 11, 12, 13, 14 Chevrolet / GMC / Cadillac Tahoe / Suburban 1500 / Avalanche 1500 / Yukon / Yukon XL 1500 / Escalade / Escalade ESV / Escalade EXT 2WD / 4WD / AWD
