    • 3-4"/3" Spindle + Coil Relocator Drop Kit for 2007-2014 GM SUVs - Extenders

    Trekline Motorsports, Inc.
    $520.57
    (No reviews yet) Write a Review
    Ships from TN Most in-stock parts ship within 1 business day.
    Fitment first Review compatibility and notes before ordering.
    Need help? Contact us before ordering.
    Adding to cart…
    Ready to order 3-4"/3" Spindle + Coil Relocator Drop Kit for 2007-2014 GM SUVs - Extenders
    SKU:
    1525DR110076
    Weight:
    73.25 LBS
    Minimum Purchase:
    1 unit
    Shipping:
    Calculated at Checkout
    Spindle Track Width Change:
    No change
    Spindle Rim Requirement:
    17 inches or larger
    Includes Shocks:
    No shocks included
    Front Drop Type:
    Spindles / Coil relocators
    Front Drop Amount (Inches):
    4
    Placement on Vehicle:
    Front; Rear
    Rear Drop Amount (Inches):
    3
    Total Drop Amount (Inches):
    4 / 3

    Product Description

    Description:

    Lower the front 3–4 inches and the rear 3 inches on the listed 2007–2014 GM SUVs. This kit pairs 2-inch drop spindles and adjustable front coil relocators with rear lowering coils. Rear shock extenders are included. Check the vehicle and suspension requirements below before ordering.

    Coil relocators fit factory struts only, not aftermarket struts or welded-on spring perches. Use 17-inch or larger wheels; 17- or 18-inch wheels also require lower ball-joint hardware matched to the installed joint’s thread.

    Includes:

    • 2-inch drop spindles (pair)
    • 1–2-inch front coil relocators
    • 3-inch rear drop coils

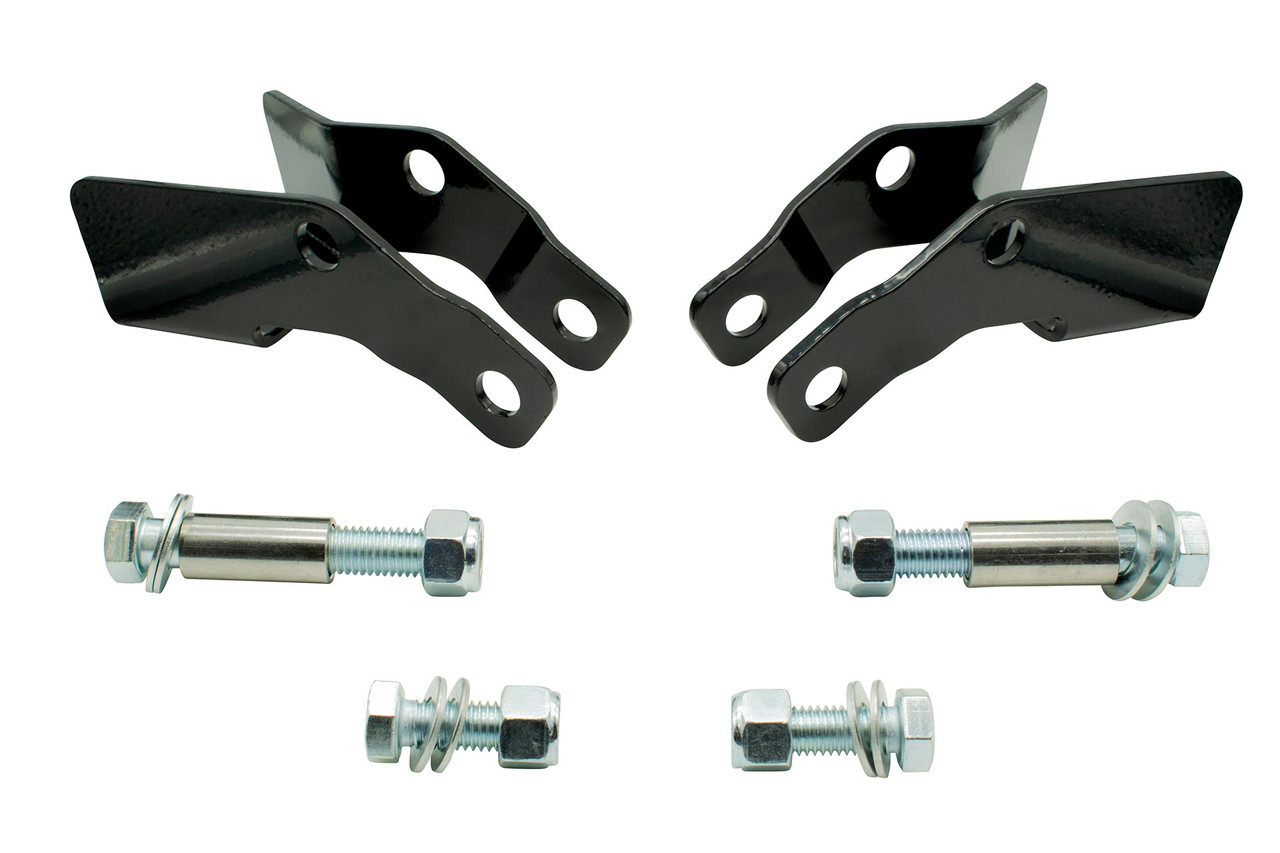

    • Rear shock extenders

    Vehicle Fitment:

    • 2007-2014 Chevrolet Tahoe 2WD / 4WD
    • 2007-2014 Chevrolet Suburban 1500 2WD / 4WD
    • 2007-2013 Chevrolet Avalanche 1500 2WD / 4WD
    • 2007-2014 GMC Yukon 2WD / 4WD
    • 2007-2014 GMC Yukon XL 1500 2WD / 4WD
    • 2007-2014 Cadillac Escalade 2WD / AWD
    • 2007-2014 Cadillac Escalade ESV 2WD / AWD
    • 2007-2013 Cadillac Escalade EXT AWD


    Fitment Notes:

    • Rear lowering coils do not fit vehicles with both RPO ZW7 and G65.
    • On 4WD and AWD vehicles, trim the upper ball-joint stud for front CV-boot clearance when installing the drop spindles.
    • Drop spindles require wheels 17 inches or larger. For 17- or 18-inch wheels, lower ball-joint hardware is required; match the installed ball-joint thread.
    • Coil relocators fit OEM struts only. They do not fit aftermarket struts or struts with a welded-on lower spring perch.
    • Factory Autoride requires rear sensor rods, sold separately. Vehicles without factory air suspension do not need them.


    Related SKUS (if any):

  • Chevrolet upper alignment arms
  • GMC upper alignment arms
  • Cadillac upper alignment arms
  • Sensor rods for factory air ride only - if equipped: Escalade
  • Sensor rods for factory air ride only - if equipped: Avalanche
  • Sensor rods for factory air ride only - if equipped: Tahoe/Suburban
  • Sensor rods for factory air ride only - if equipped: Yukon/XL
  • Lower Ball Joint Hardware Kit — REQUIRED for 17"/18" rims with these spindles (M16-2.0, stock/OEM ball joints)
  • Lower Ball Joint Hardware Kit — REQUIRED for 17"/18" rims with these spindles (M16-1.5, aftermarket ball joints)

    • 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014 Chevrolet / GMC / Cadillac Tahoe / Suburban 1500 / Avalanche 1500 / Yukon / Yukon XL 1500 / Escalade / Escalade ESV / Escalade EXT 2WD / 4WD / AWD

    07, 08, 09, 10, 11, 12, 13, 14 Chevrolet / GMC / Cadillac Tahoe / Suburban 1500 / Avalanche 1500 / Yukon / Yukon XL 1500 / Escalade / Escalade ESV / Escalade EXT 2WD / 4WD / AWD
