    • 3-4"/5" Spindle + Coil Relocator Drop Kit for 2007-2014 GM SUVs

    Trekline Motorsports, Inc.
    $667.13
    (No reviews yet) Write a Review
    Ships from TN Most in-stock parts ship within 1 business day.
    Fitment first Review compatibility and notes before ordering.
    Need help? Contact us before ordering.
    Adding to cart…
    Ready to order 3-4"/5" Spindle + Coil Relocator Drop Kit for 2007-2014 GM SUVs
    SKU:
    1525DR110095
    Weight:
    82.45 LBS
    Minimum Purchase:
    1 unit
    Shipping:
    Calculated at Checkout
    Spindle Track Width Change:
    No change
    Spindle Rim Requirement:
    17 inches or larger
    Includes Shocks:
    No shocks included
    Front Drop Type:
    Spindles / Coil relocators
    Front Drop Amount (Inches):
    4
    Placement on Vehicle:
    Front; Rear
    Rear Drop Amount (Inches):
    5
    Total Drop Amount (Inches):
    4 / 5

    Product Description

    Description:

    Lower the front 3–4 inches and the rear 5 inches on the listed 2007–2014 GM SUVs. This kit pairs 2-inch drop spindles and adjustable front coil relocators with rear lowering coils. Rear trailing-arm relocation brackets are included. Check the vehicle and suspension requirements below before ordering.

    Spindles require 17-inch or larger wheels. Lower ball-joint hardware is required for 17/18-inch wheels; match the installed thread. On 4WD and AWD models, trim the upper ball-joint stud for CV-boot clearance.

    Includes:

    • 2-inch drop spindles (pair)

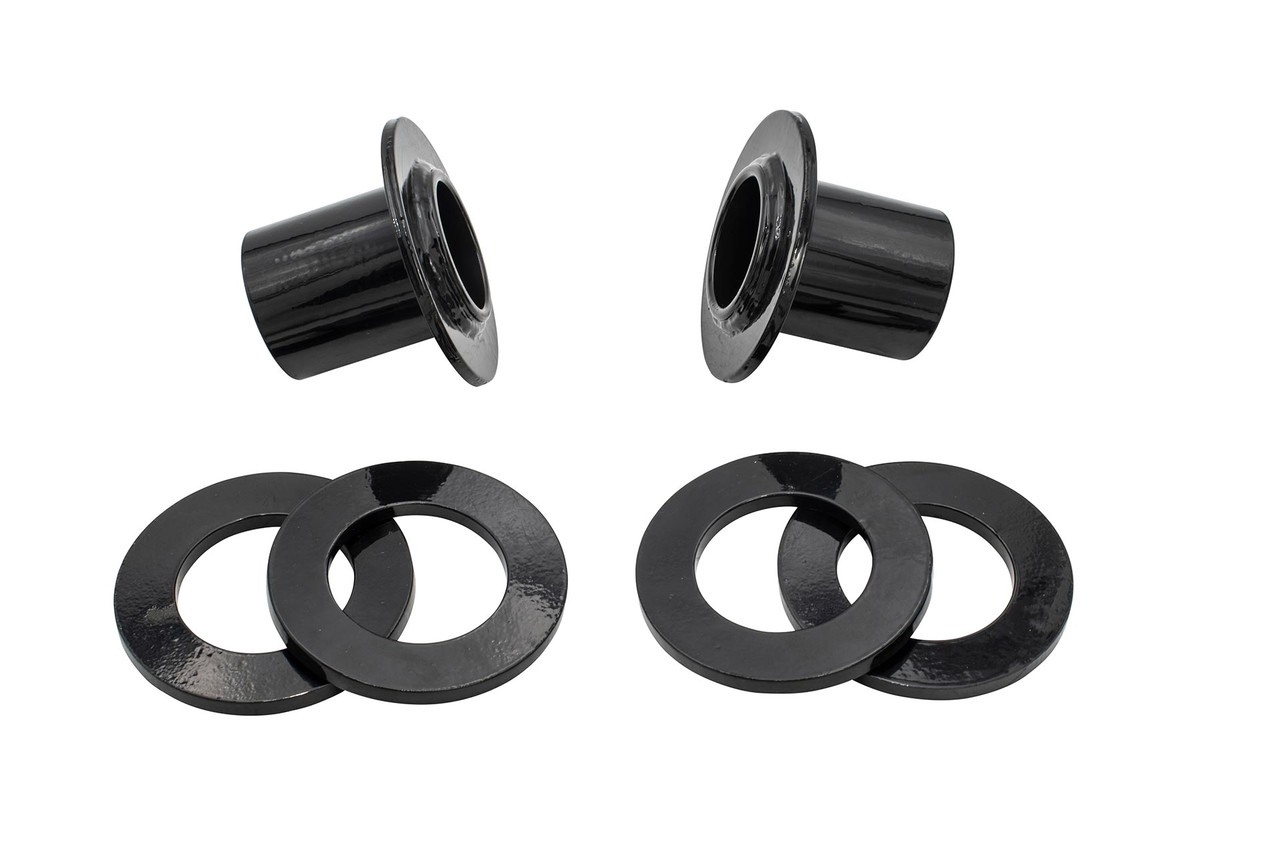

    • Adjustable 1–2-inch front coil relocators
    • 5-inch rear drop coils
    • Rear trailing-arm relocation bracket kit

    Vehicle Fitment:

    • 2007-2014 Chevrolet Tahoe 2WD / 4WD
    • 2007-2014 Chevrolet Suburban 1500 2WD / 4WD
    • 2007-2013 Chevrolet Avalanche 1500 2WD / 4WD
    • 2007-2014 GMC Yukon 2WD / 4WD
    • 2007-2014 GMC Yukon XL 1500 2WD / 4WD
    • 2007-2014 Cadillac Escalade 2WD / AWD
    • 2007-2014 Cadillac Escalade ESV 2WD / AWD
    • 2007-2013 Cadillac Escalade EXT AWD


    Fitment Notes:

    • Rear lowering coils do not fit vehicles with both RPO ZW7 and G65.
    • On 4WD and AWD vehicles, trim the upper ball-joint stud for front CV-boot clearance when installing the drop spindles.
    • Drop spindles require wheels 17 inches or larger. For 17- or 18-inch wheels, lower ball-joint hardware is required; match the installed ball-joint thread.
    • Coil relocators fit OEM struts only. They do not fit aftermarket struts or struts with a welded-on lower spring perch.
    • Free Travel Mod required for 5" Rear Drop! Rear factory bump-stop brackets must be completely removed to provide additional suspension travel.
    • Factory Autoride requires rear sensor rods, sold separately. Vehicles without factory air suspension do not need them.


    Related SKUS (if any):

  • Chevrolet upper alignment arms
  • GMC upper alignment arms
  • Cadillac upper alignment arms
  • Sensor rods for factory air ride only - if equipped: Escalade
  • Sensor rods for factory air ride only - if equipped: Avalanche
  • Sensor rods for factory air ride only - if equipped: Tahoe/Suburban
  • Sensor rods for factory air ride only - if equipped: Yukon/XL
  • Lower Ball Joint Hardware Kit — REQUIRED for 17"/18" rims with these spindles (M16-2.0, stock/OEM ball joints)
  • Lower Ball Joint Hardware Kit — REQUIRED for 17"/18" rims with these spindles (M16-1.5, aftermarket ball joints)
  • SUV shock extenders for trailing-arm relocators

    • 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014 Chevrolet / GMC / Cadillac Tahoe / Suburban 1500 / Avalanche 1500 / Yukon / Yukon XL 1500 / Escalade / Escalade ESV / Escalade EXT 2WD / 4WD / AWD

    07, 08, 09, 10, 11, 12, 13, 14 Chevrolet / GMC / Cadillac Tahoe / Suburban 1500 / Avalanche 1500 / Yukon / Yukon XL 1500 / Escalade / Escalade ESV / Escalade EXT 2WD / 4WD / AWD
