    • 4"/6" Spindle + Coil Drop Kit for 2007-2014 GM SUVs - Rear Shocks

    Trekline Motorsports, Inc.
    $831.14
    (No reviews yet) Write a Review
    Ships from TN Most in-stock parts ship within 1 business day.
    Fitment first Review compatibility and notes before ordering.
    Need help? Contact us before ordering.
    Adding to cart…
    Ready to order 4"/6" Spindle + Coil Drop Kit for 2007-2014 GM SUVs - Rear Shocks
    SKU:
    1525DR110122
    Weight:
    106.45 LBS
    Minimum Purchase:
    1 unit
    Shipping:
    Calculated at Checkout
    Spindle Track Width Change:
    No change
    Spindle Rim Requirement:
    17 inches or larger
    Includes Shocks:
    Rear shocks only
    Front Drop Type:
    Spindles / Coils
    Engine Size:
    V8
    Front Drop Amount (Inches):
    4
    Placement on Vehicle:
    Front; Rear
    Rear Drop Amount (Inches):
    6
    Total Drop Amount (Inches):
    4 / 6

    Product Description

    Description:

    Lower the front 4 inches and the rear 6 inches on the listed 2007–2014 GM SUVs. This kit pairs 2-inch drop spindles and 2-inch front drop coils with rear lowering coils. Rear trailing-arm relocation brackets and Dyno Master TT5000 rear shocks are included. Check the vehicle and suspension requirements below before ordering.

    17-inch minimum. At 17/18 inches, thread-matched lower ball-joint hardware is required. For vehicles without factory Autoride. Not compatible with the factory Autoride system.

    Includes:

    • 2-inch front drop coils

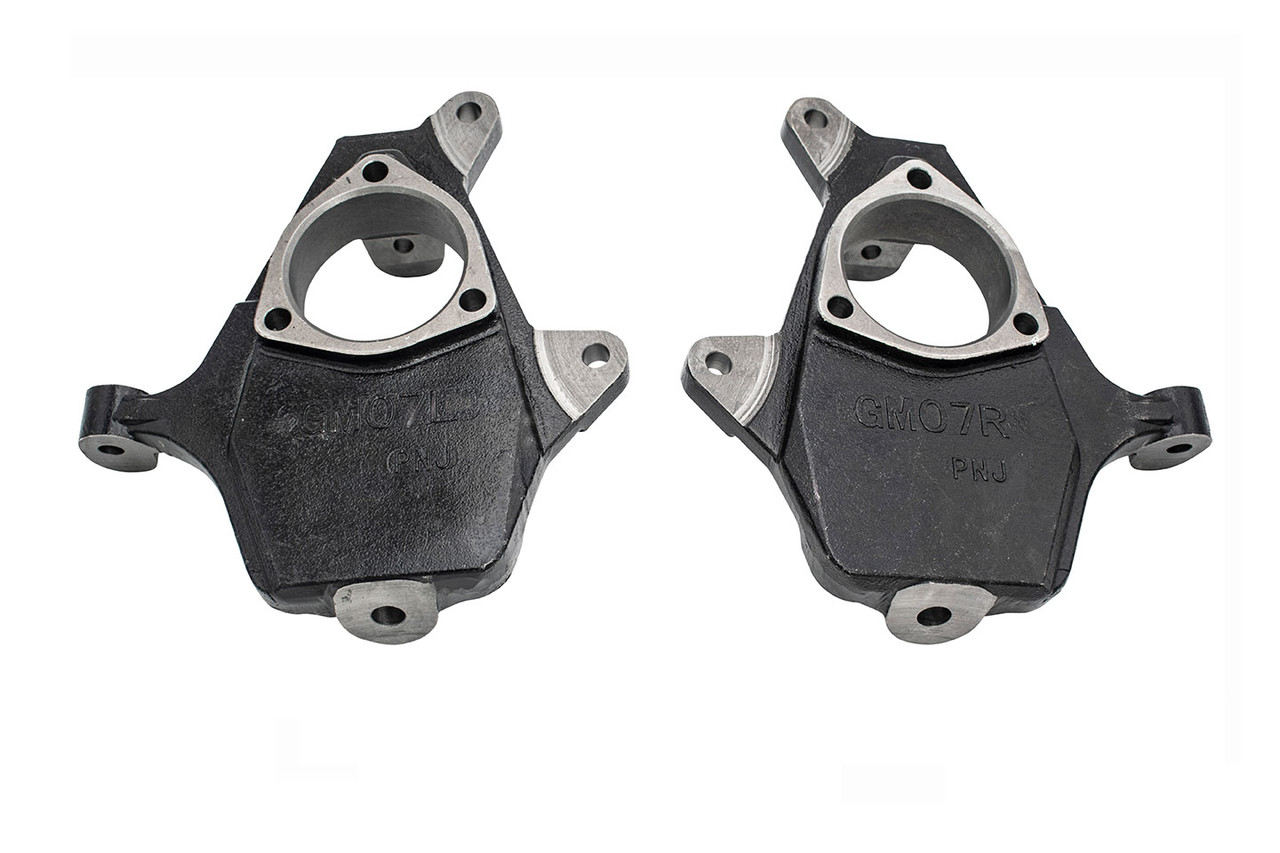

    • 2-inch drop spindles (pair)
    • 6-inch rear drop coils
    • Rear trailing-arm relocation bracket kit (required)
    • Two Dyno Master TT5000 twin-tube nitrogen-charged rear shocks
    • Shock sleeves (4)

    Vehicle Fitment:

    • 2007-2014 Chevrolet Tahoe 2WD / 4WD
    • 2007-2014 Chevrolet Suburban 1500 2WD / 4WD
    • 2007-2013 Chevrolet Avalanche 1500 2WD / 4WD
    • 2007-2014 GMC Yukon 2WD / 4WD
    • 2007-2014 GMC Yukon XL 1500 2WD / 4WD
    • 2007-2014 Cadillac Escalade 2WD / AWD
    • 2007-2014 Cadillac Escalade ESV 2WD / AWD
    • 2007-2013 Cadillac Escalade EXT AWD


    Fitment Notes:

    • Rear lowering coils do not fit vehicles with both RPO ZW7 and G65.
    • Not compatible with factory Autoride.
    • On 4WD and AWD vehicles, trim the upper ball-joint stud for front CV-boot clearance when installing the drop spindles.
    • Drop spindles require wheels 17 inches or larger. For 17- or 18-inch wheels, lower ball-joint hardware is required; match the installed ball-joint thread.
    • Free Travel Mod required for 6" Rear Drop! Rear factory bump-stop brackets must be completely removed to provide additional suspension travel.


    Related SKUS (if any):

  • Chevrolet upper alignment arms
  • GMC upper alignment arms
  • Cadillac upper alignment arms
  • Lower Ball Joint Hardware Kit — REQUIRED for 17"/18" rims with these spindles (M16-2.0, stock/OEM ball joints)
  • Lower Ball Joint Hardware Kit — REQUIRED for 17"/18" rims with these spindles (M16-1.5, aftermarket ball joints)

    • 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014 Chevrolet / GMC / Cadillac Tahoe / Suburban 1500 / Avalanche 1500 / Yukon / Yukon XL 1500 / Escalade / Escalade ESV / Escalade EXT 2WD / 4WD / AWD

    07, 08, 09, 10, 11, 12, 13, 14 Chevrolet / GMC / Cadillac Tahoe / Suburban 1500 / Avalanche 1500 / Yukon / Yukon XL 1500 / Escalade / Escalade ESV / Escalade EXT 2WD / 4WD / AWD
